TERRA-JET DJ 13

HDD class: 6 - 8 tons

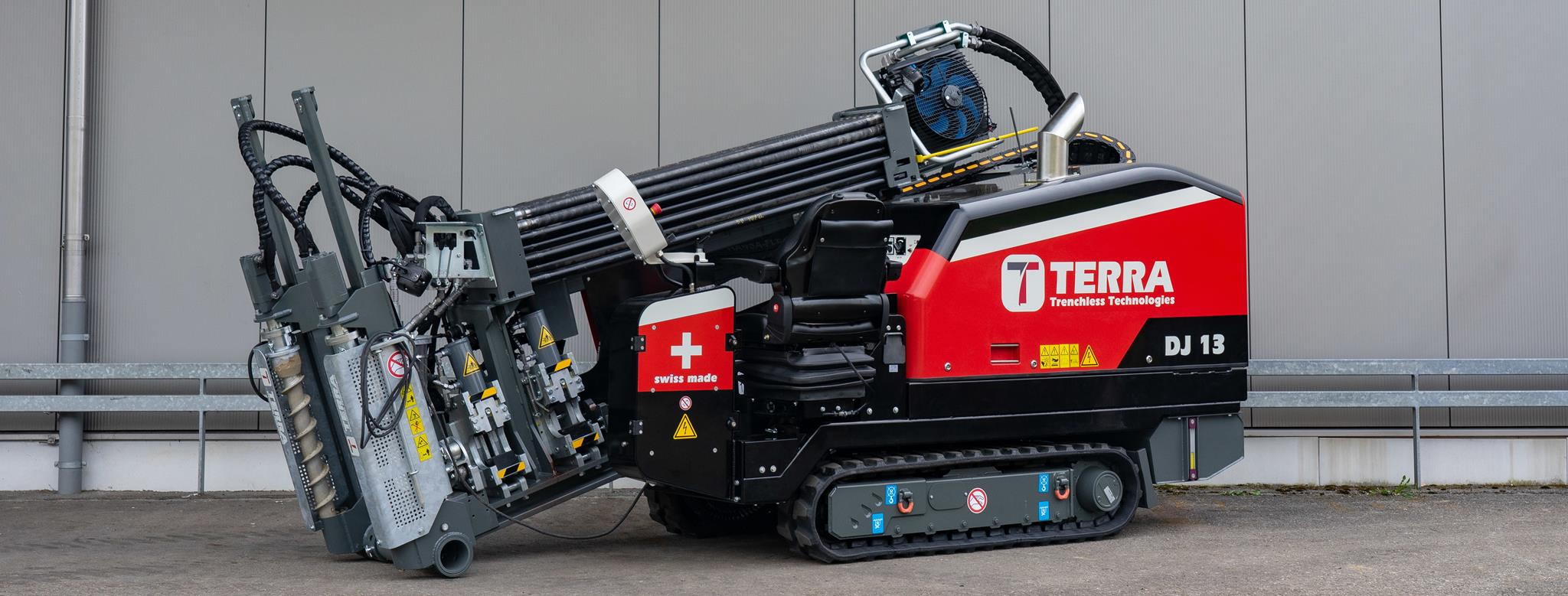

The ideal machine for fiber optic cables - the HDD drill DJ 13

    The TERRA-JET DJ 13 is one of the most powerful HDD machine in the 6-8 tonnes class. It is more powerful, more productive and faster than its previous model.
    With the HDD drill rig TERRA-JET DJ 13 you can drill up to 100 m (330 ft) and backream up to ø 300 mm.

    The HATZ Diesel engine has a power of 55.4 kW (75 HP). Such engines usually are used in HDD machines of the 8-10 tonnes class.

    Due to its high power the engine rotates with 2'300 rpm. This reduces the noise and the Diesel consumption. This HATZ Diesel engine fulfils the newest Stage 5 norms. No AdBlue required.

The ideal machine for fiber optic cables - the HDD drill DJ 13
The ideal machine for fiber optic cables - the HDD drill DJ 13

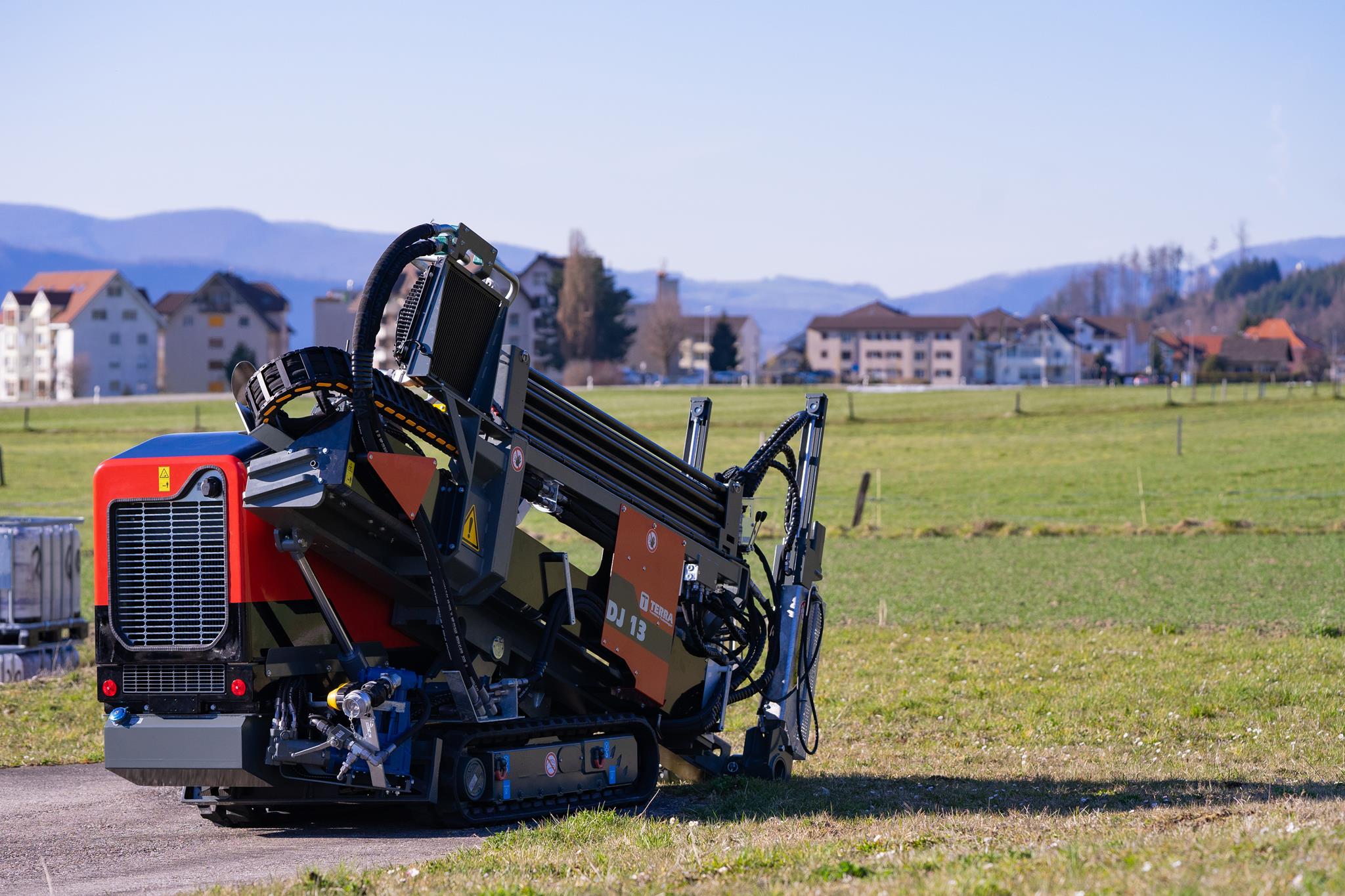

Made for productivity - highest drilling volume

    The high-pressure FMC pump is on board. With an increased drilling volume of 95 ltr/min (25 gpm) contractors can face various challenging ground conditions. Optionally TERRA offers an industry-leading mud pump with even 160 ltr/min (45 gpm) of drilling volume.

Made for productivity - highest drilling volume
Made for productivity - highest drilling volume

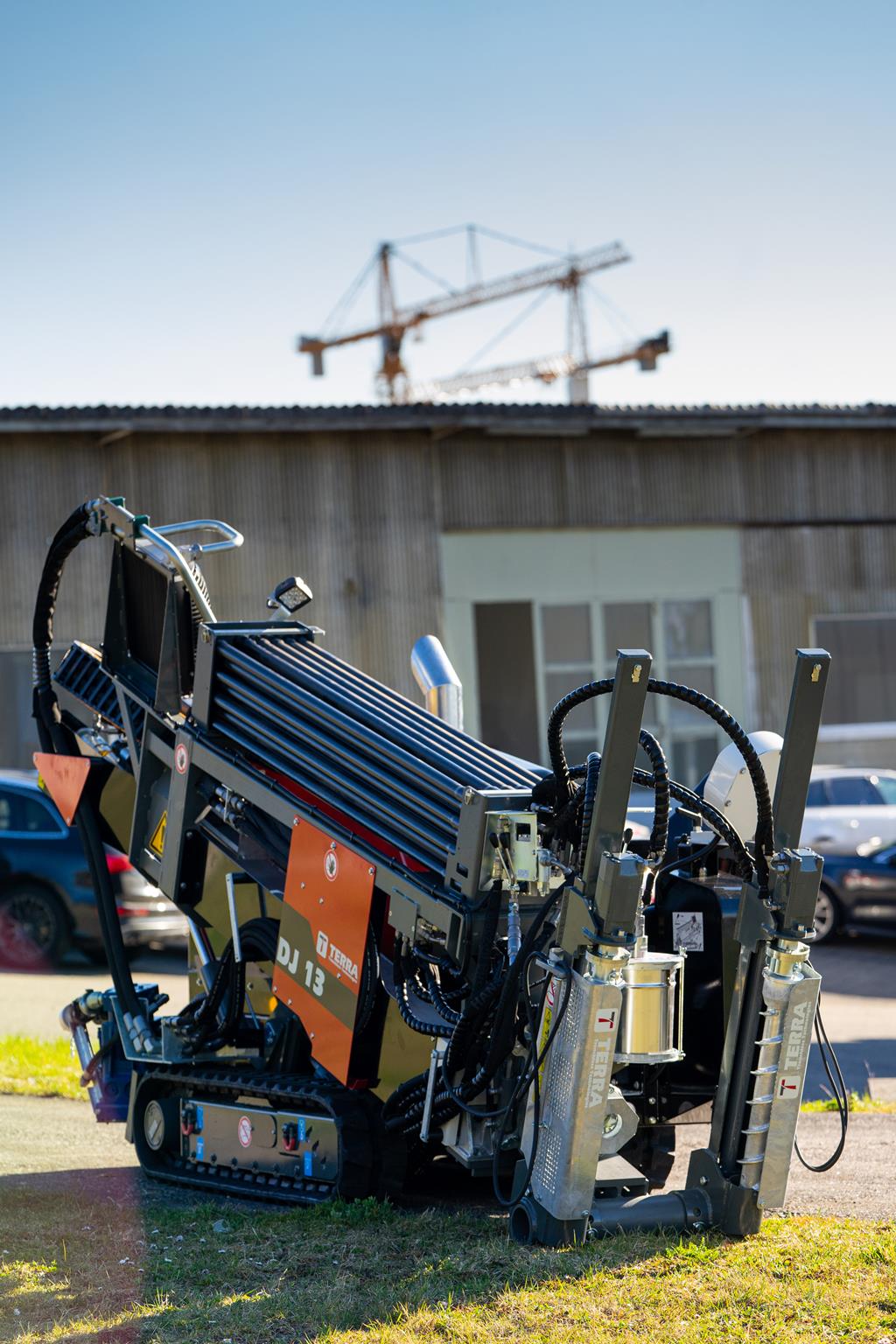

High quality drill rods

    The drill rods of the TERRA-JET DJ 13 are 2.0 meters long which means less drill rod changing and faster operation. With a bending radius of 28 m you can easily steer around existing pipes in the ground. The magazine is equipped with 70 m of drill rods.

High quality drill rods
High quality drill rods

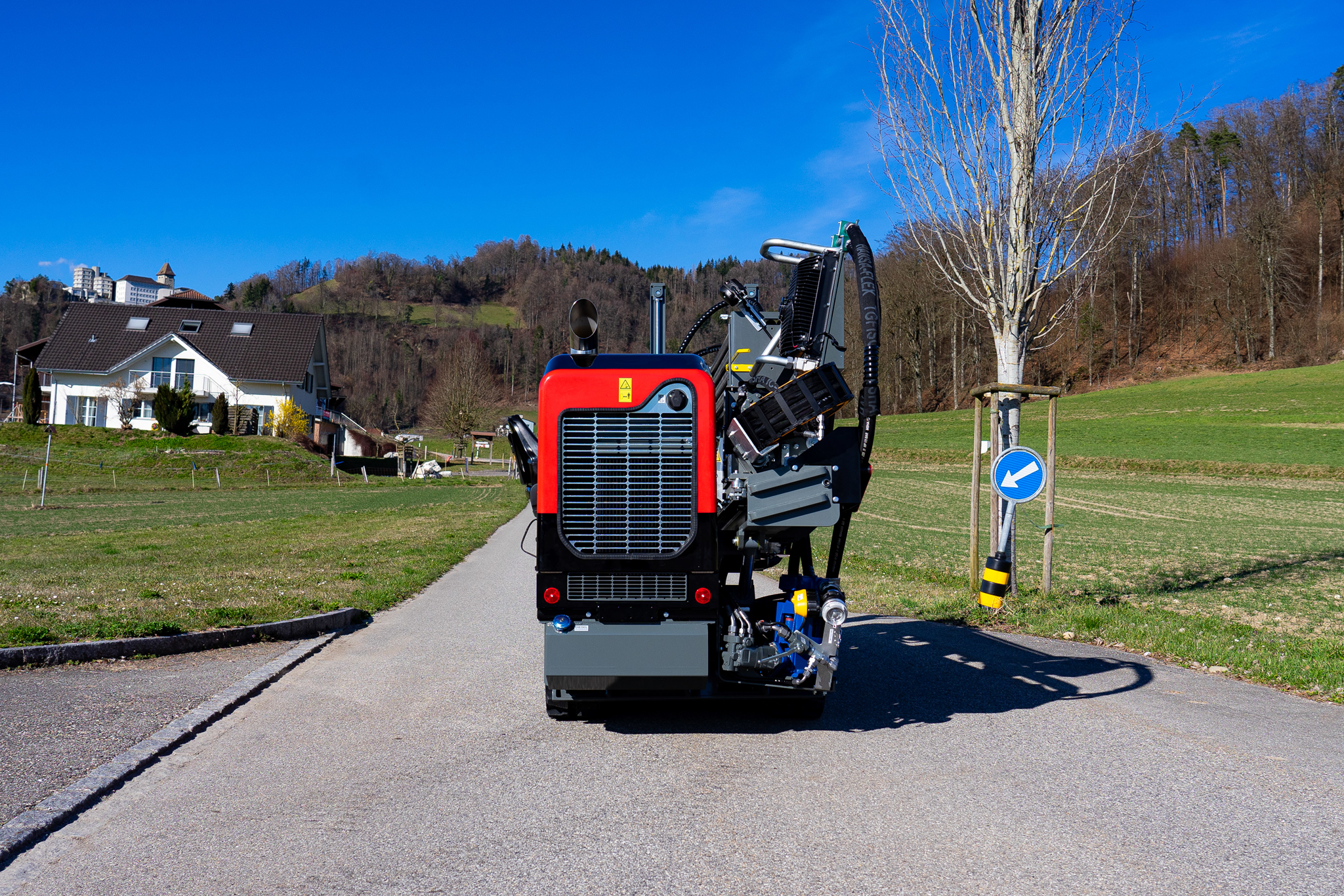

Small and compact

    With its compact design and increased movability the DJ 13 can drive through a 1.30 m wide entrance. The machine is steered by a remote control, fast and safely.

Small and compact
Small and compact

Oscillating Drill Ramp

    TERRA has developed a new oscillating drill ramp. It has two rotation points with two cylinders. With this unique system, the drill ramp can move from 18% up to 40% (10° - 22°). The rubber crawler stays at the ground up to 36% for a good stability.

Oscillating Drill Ramp
Oscillating Drill Ramp

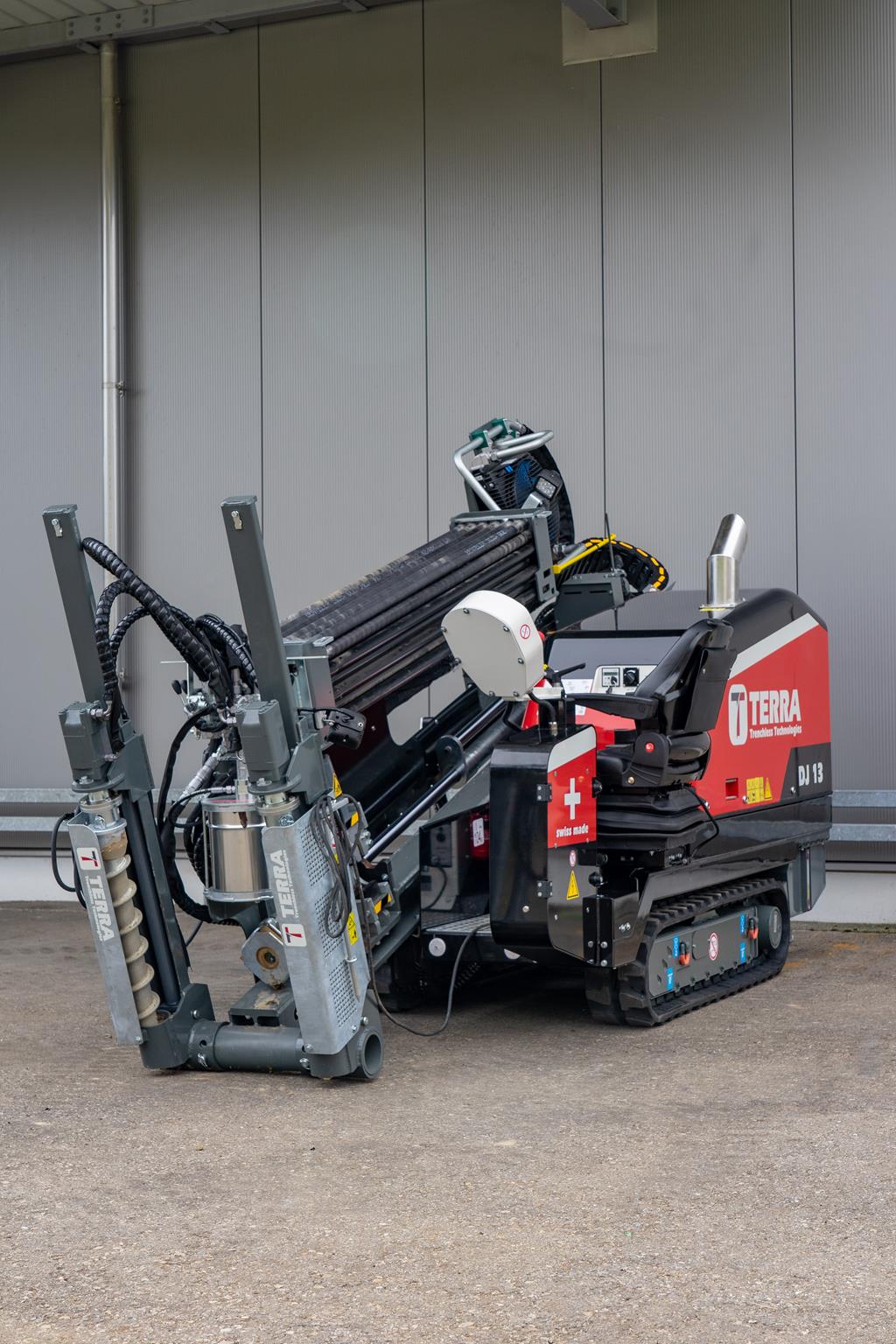

Double cylinder drive („DIRECT RAM“) - free of losses

    THRUST and BACKREAMING of the driving saddle happens by a direct double cylinder drive („DIRECT RAM“). This is free of losses, robust and powerful. This new idea from TERRA allows maximum drilling and backreaming forces. Even at slow speeds, even with a short drilling ramp. The double cylinder operates in both directions with 60 kN (6 tons, 13,000 lbs). In the quick gear the driving saddle reaches 40 m/min (120 ft/min).

    The driving saddle is supported by roles on top, at the bottom and sidewise.

Double cylinder drive („DIRECT RAM“) - free of losses
Double cylinder drive („DIRECT RAM“) - free of losses

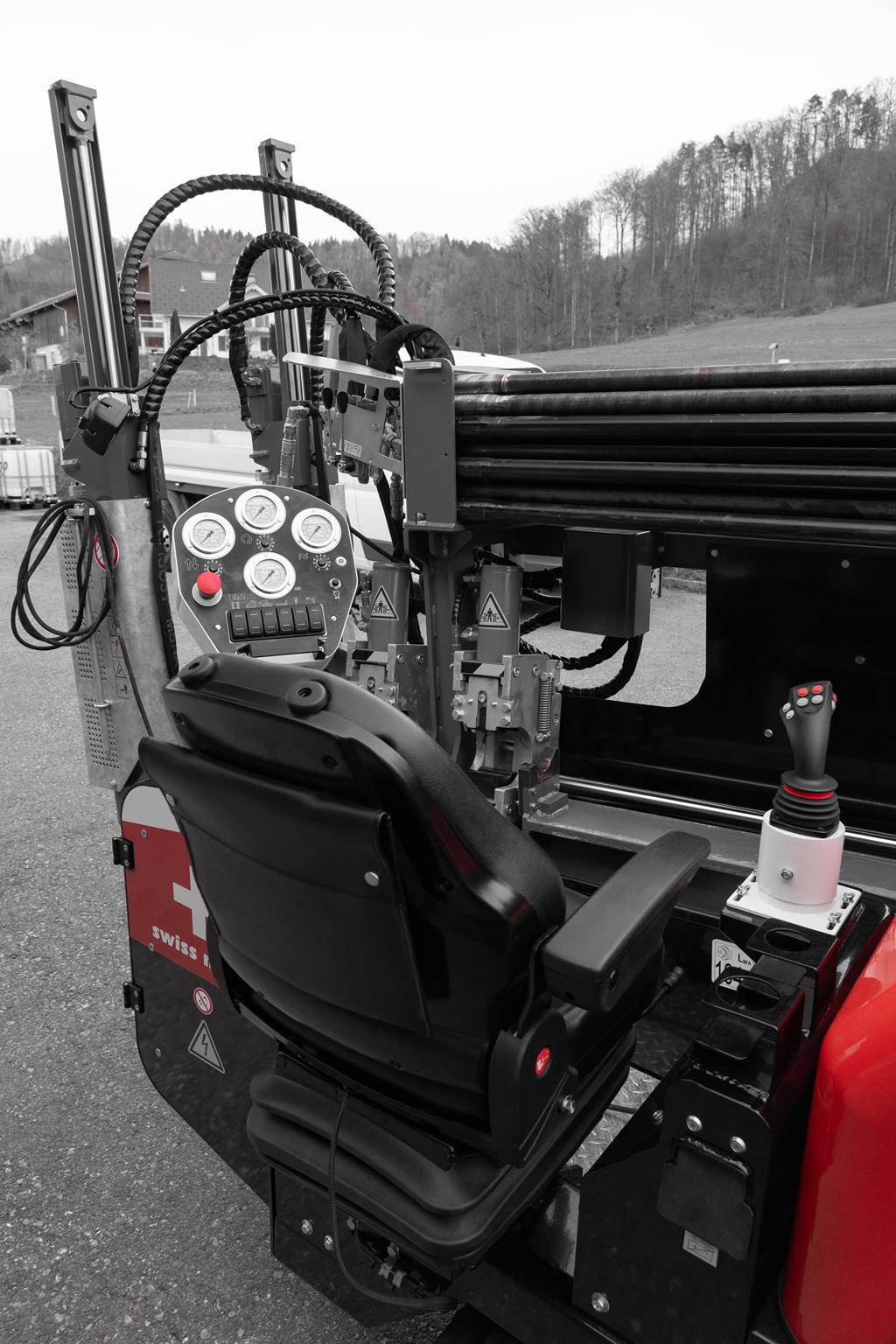

Optimized drilling assistant systems

    Intelligent drilling assistant systems like the thrust mode, carve mode, the ADBSe or the drill speed control make the drilling more efficient and more easy. The operator can relax, the machine does the work. The electronical CLP control manages all drilling assistant systems and feels the underground. Like this the machine operates at highest productivity.


    The DJ 13 is equipped with the following drilling assistant systems:


  1. Thrust control, to adjust thrust, pullback force and speed
  2. Speed control, drilling at the push of a button
  3. Carve mode, for hard ground conditions
  4. ADBSe, autmoatic adjustment of speed and torque
  5. Electro-hydraulic greasing system
  6. Automatic break apart system

Optimized drilling assistant systems
Optimized drilling assistant systems

Hydraulic anchoring and greasing system

    The hydraulic anchoring system works with two independent pillars. The anchoring system has hard-metal teeth. They even drill through asphalt and gravel. Each pillar can be adjusted individually in any angle. If there are pipes in the ground, the anchoring system can even be adjusted sidewise.

    Even this small HDD machine has a hydraulic greasing system. It consists of an 8 kg (17.6 lbs) greasing barrel. The grease is a special cooper grease.

Hydraulic anchoring and greasing system
Hydraulic anchoring and greasing system



Technical Data

Technical Data

*  zemin koşullarına gore
** delme çubuğu boyutuna göre
Teknik özellikler önceden haber verilmeksizin değiştirilebilir.
Çekme kuvveti
60 kN (6 t)
13,000 lbs
İtme kuvveti
60 kN (6 t)
13,000 lbs
Motor Gücü
55 kW (75 PS)
75 HP
1.viteste tork
2'300 Nm
1,700 ft.lbs
2. viteste tij dönüş hızı
225 U/min
225 rpm
delgi sıvısı hacmi - pilot delgi
95 l/min
25 gpm
delgi sıvısı hacmi - pilot delgi, option
160 l/min
45 gpm
Maksimum delme sıvısı basıncı
75 bar
1,000 psi
Delgi hızı - çabuk viteste
40 m/min
120 ft/min
Ø Pilot delgi çapı
60 - 110 mm
3” - 4.5”
Minimum entry angle
10° (18 %)
10° (18 %)
Maximum entry angle
22° (40 %)
22° (40 %)
Maksimum geriçekme çapı*
ø 300 mm
ø 12"
Maksimum delgi uzunluğu*
100 m
350 ft
Tij uzunluğu
2.0 m
6.6 ft
Tij çapı
57/52 mm
2"
Minimum kurp yarıçapı **
28 m
95 ft
4.5 km/h
3 miles/h
operatörün kulağıdaki ses - kabinsiz
85 dB(A)
85 dB(A)
kulağıdaki ses Lwa
104 dB(A)
104 dB(A)
4.15 x 1.50 x 2.40 m
13,7 x 5,0 x 7,9 ft
boyutlar L x W x H kabin dahil
4.30 x 1.28 x 1.90 m
14,2 x 4,2 x 6,2 ft
boyutlar L x W x H kabinsiz
4.25 x 1.25 x 2.40 m
14,0 x 4,1 x 7,9 ft
Ø 45 mm’lik 45 delme çubuğu dahil ağırlık
4.2 t
9,140 lbs
weight without cabin with 30 drill rods, ø 55 mm
3.6 t
7,850 lbs

Ürünler Faydaları

Double cylinder drive (patented):

Direct ram, 100 % power at the drill rod

Cruise mode

Automatic drilling at the push of a buttom

Carve mode:

Easy steering in hard ground

Thrust control:

Automatic speed adjustment to a maximum thrust control

ADBSe:

Automatic electronic drilling and backreaming system
